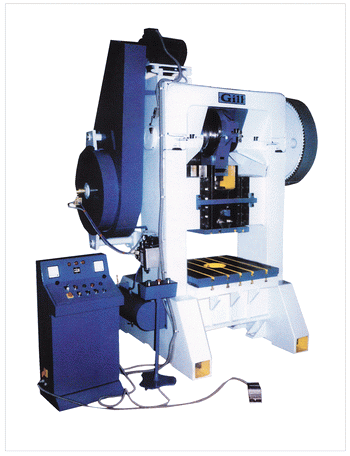

SINGLE POINT PNEUMATIC CLUTCH PILLAR TYPE POWER PRESS
5
0 to 400 Ton
SPECIFICATION IN MM
Capacity
100 Ton
150 Ton
200 Ton
250 Ton
300 Ton
Stroke (Fixed) Std.
120
160
160
160
250
Variable (optional)
10-120
10-160
10-160
10-160
10-160
Area Of Bolster (LR x FB)
740x680
820x760
820x760
1020-850
1250x1250
Thickness of Bolster
100
120
120
150
150
Bed To Ram
450
500
500
550
600
Ram Area
650x500
700x550
700x550
850x630
1000x800
Ram Adjustment
80
90
90
100
125
Floor To Top Bolster
900
900
900
1000
1000
Stroke Per Minute
40
30
30
25
25
Floor Space Reqd.
1120x1490
1220x1600
1220x1600
1490x1790
1740x1900
Main Motor HP
10
15
15
25
30
Slide Adjustment Motor HP
0.75
1
1
1.5
2
Over All Height
3100
3290
3290
3600
4500
Approx. Weight (kgs)
5000
6500
8000
13000
16000
